What are the pin outs for the AES16e?
Pin |
Signal |
Pin |
Signal |
Pin |
Signal |
1 |
Clock Gnd |
10 |
Clock In |
|
|
2 |
OUT4 Cold |
11 |
OUT4 Hot |
19 |
OUT4 Gnd |
3 |
OUT3 Gnd |
12 |
OUT3 Cold |
20 |
OUT3 Hot |
4 |
OUT2 Cold |
13 |
OUT2 Hot |
21 |
OUT2 Gnd |
5 |
OUT1 Gnd |
14 |
OUT1 Cold |
22 |
OUT1 Hot |
6 |
IN4 Cold |
15 |
IN4 Hot |
23 |
IN4 Gnd |
7 |
IN3 Gnd |
16 |
IN3 Cold |
24 |
IN3 Hot |
8 |
IN2 Cold |
17 |
IN2 Hot |
25 |
IN2 Gnd |
9 |
IN1 Gnd |
18 |
IN1 Cold |
26 |
IN1 Hot |
Pin |
Signal |
Pin |
Signal |
Pin |
Signal |
1 |
Clock Gnd |
10 |
Clock Out |
|
|
2 |
OUT8 Cold |
11 |
OUT8 Hot |
19 |
OUT8 Gnd |
3 |
OUT7 Gnd |
12 |
OUT7 Cold |
20 |
OUT7 Hot |
4 |
OUT6 Cold |
13 |
OUT6 Hot |
21 |
OUT6 Gnd |
5 |
OUT5 Gnd |
14 |
OUT5 Cold |
22 |
OUT5 Hot |
6 |
IN8 Cold |
15 |
IN8 Hot |
23 |
IN8 Gnd |
7 |
IN7 Gnd |
16 |
IN7 Cold |
24 |
IN7 Hot |
8 |
IN6 Cold |
17 |
IN6 Hot |
25 |
IN6 Gnd |
9 |
IN5 Gnd |
18 |
IN5 Cold |
26 |
IN5 Hot |
Pin |
Signal |
1 |
Gnd |
2 |
Hot |
3 |
Cold |

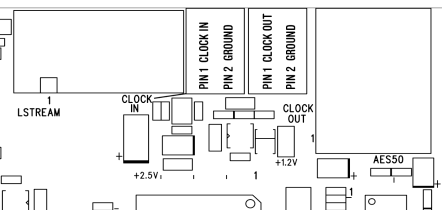

Pin |
Signal |
1 |
Clock In |
2 |
Gnd |
Pin |
Signal |
1 |
Clock Out |
2 |
Gnd |
